Key Features

  • The casing material is a minimum class 30 cast iron with the suction and discharge flanges displaced 180 degrees with the centerlines on the same horizontal plane.
  • Bronze casing ring to provide sealing for minimum recirculation between the suction and discharge areas of the casing.
  • Impeller bronze, enclosed, single-suction design.
  • Stuffing box is packed type (UL, ULC, FM). Packing with 304 stainless steel gland. Mechanical seal (ULC only).
  • Top pull out design requires less installation space than standard HSC design.
Fire Pumps

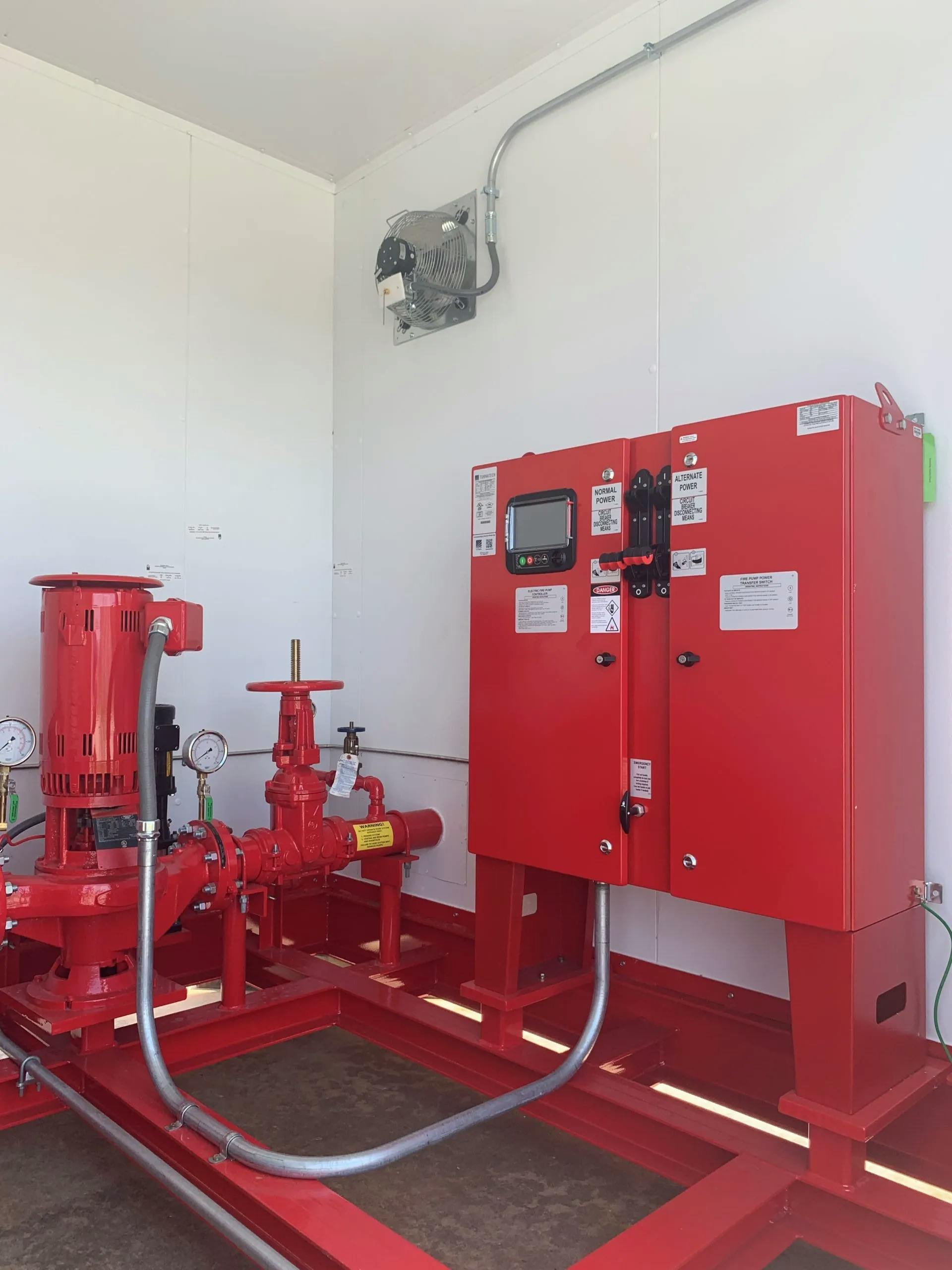

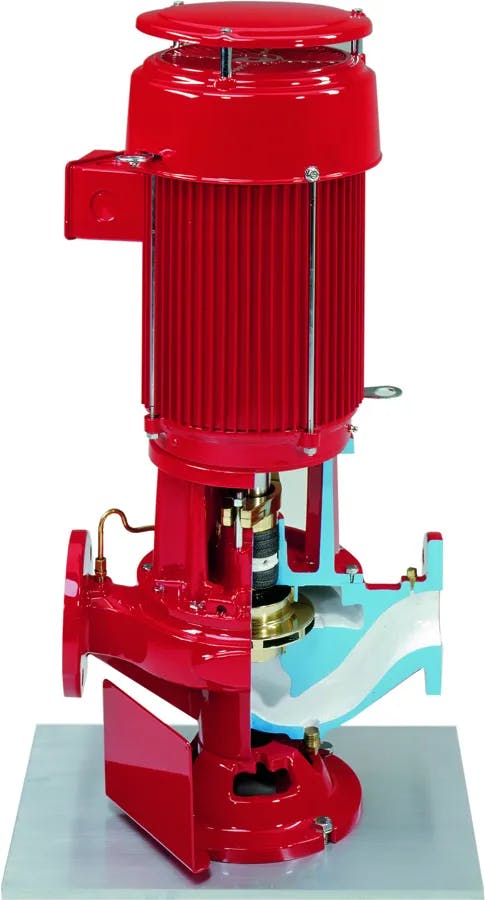

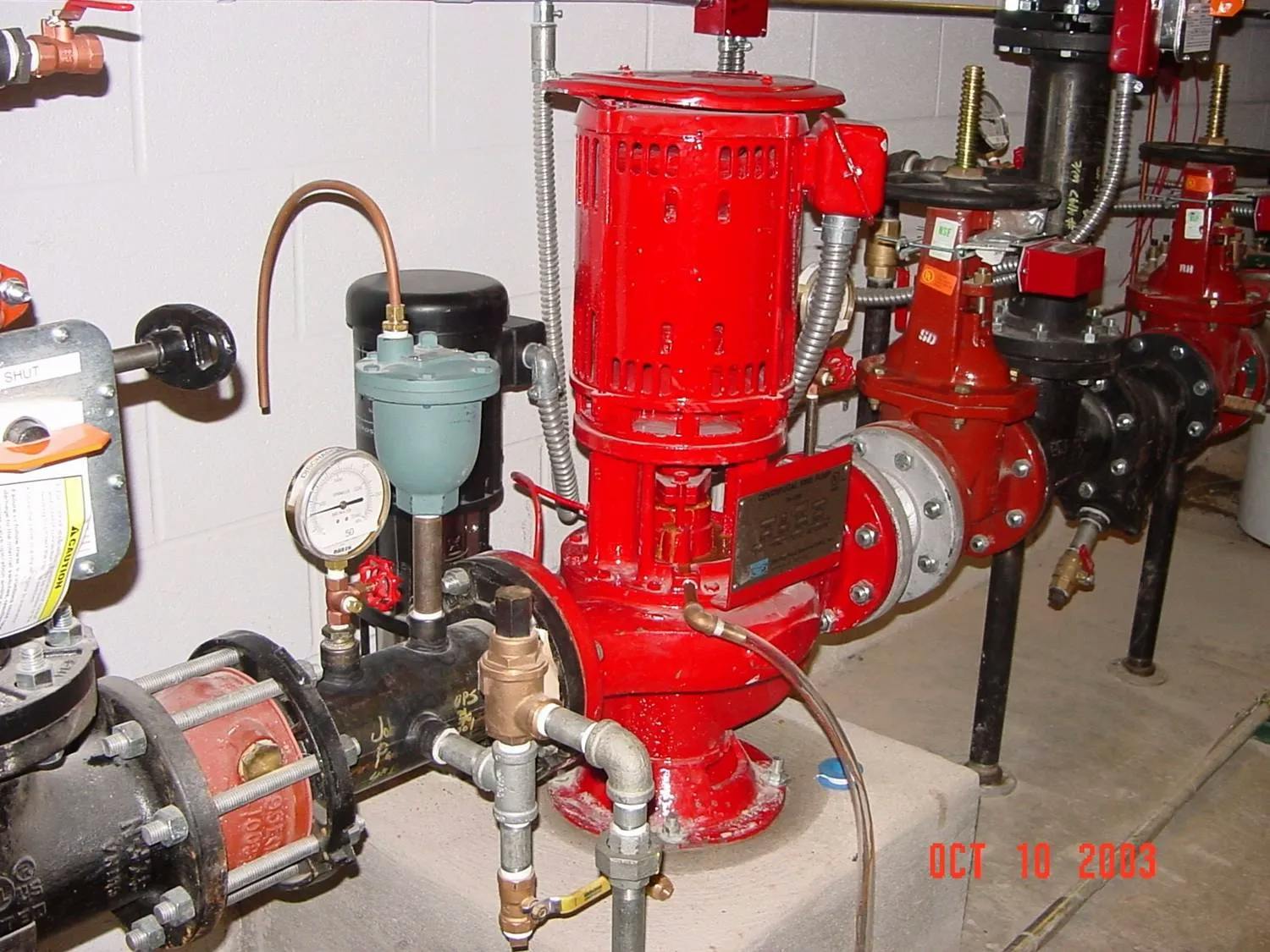

PVF – Peerless Vertical In-Line Pumps

Applications

Commercial Building
Industrial Facilities
Energy Facilities
Oil & Gas Facilities
Power Plants

Description

Complete line of vertical in-line, space saving, single-stage fire pumps. Peerless PVF in-line fire pumps are constructed in accordance with the requirements of Underwriters Laboratories (UL), Underwriters Laboratories­ Canada (ULC) and Factory Mutual (FM). PVF fire pumps comply with the standards of National Fire Protection Association (NFPA) Pamphlet 20.

Specifications

Capacities 50-1,500 gpm (11-340 m3/hr)
Head Up to 406 feet (123 m)
Pressure Up to 175 psi (12 bar)
Horsepower Up to 125 hp (93 kW)
Temperature Ambient within the limits for satisfactory equipment operation
Drives Electric motors
Liquids Potable/non-potable water, salt water
Materials Cast iron, bronze fitted
