Key Features
- Peerless Pump offers a complete range of submersible pumps and motors to fit virtually any application, with flow rates of 0 – 300 GPM
- 100% High-grade Stainless Steel
- Hydraulic design, and precise manufacturing process
- Peerless Pump manufactures it’s own line of quality submersible motors in a broad variety of sizes. With the same stainless steel construction and quality design as our pumps.
- Available controls to protect the motor against burnout and dry-running, plus the ability to monitor the system allowing the user to optimize settings 2-pole

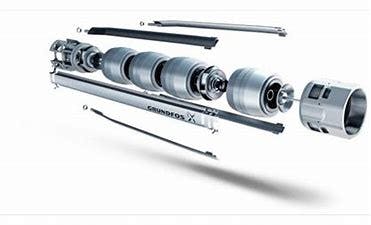

SP – Jockey fire pump
Applications
- Commercial buildings
- Industrial Facilities
- Energy Facilities
- Oil & Gas Facilities
- Power Plants
- Marine Applications
Description
Peerless SP are submersible borehole pumps, designed for pumping groundwater. Peerless SP are all stainless-steel pumps, and they are available in 3 material grades. The pumps are suitable for boreholes in sizes ranging from 4″ over 6″ and 8″ to 10″. The motor sizes for the pumps are available in 0.37-250 KW.
Specifications
- Capacities
- 1-300 GPM, 68.1 m3/hr
- Head
- Up to 1200 Feet, 365 m
- Pressure
- 519 PSI, 35.78 bar
- Horsepower
- 25 HP, 18.64 kw
- Temperature
- 32-140 F, 0-60 C
- Drives
- Submersible Motor
- Liquids
- Water, Seawater
- Materials
- 316 SS
