Key Features
- The Peerless multi-stage pumps are designed for high efficiency, long life and ease of maintenance and can be used in a variety of fire pumping services..
- Shafts, ball bearings. Modern design case. Wear rings and shaft sleeves are designed to provide pro1e1cion of wearing surfaces and insure extended pump life.
TUF & TUTF
Applications
- Commercial Building
- Industrial Facilities
- Energy Facilities
- Oil & Gas Facilities
- Power Plants
- Marine Applications
Description

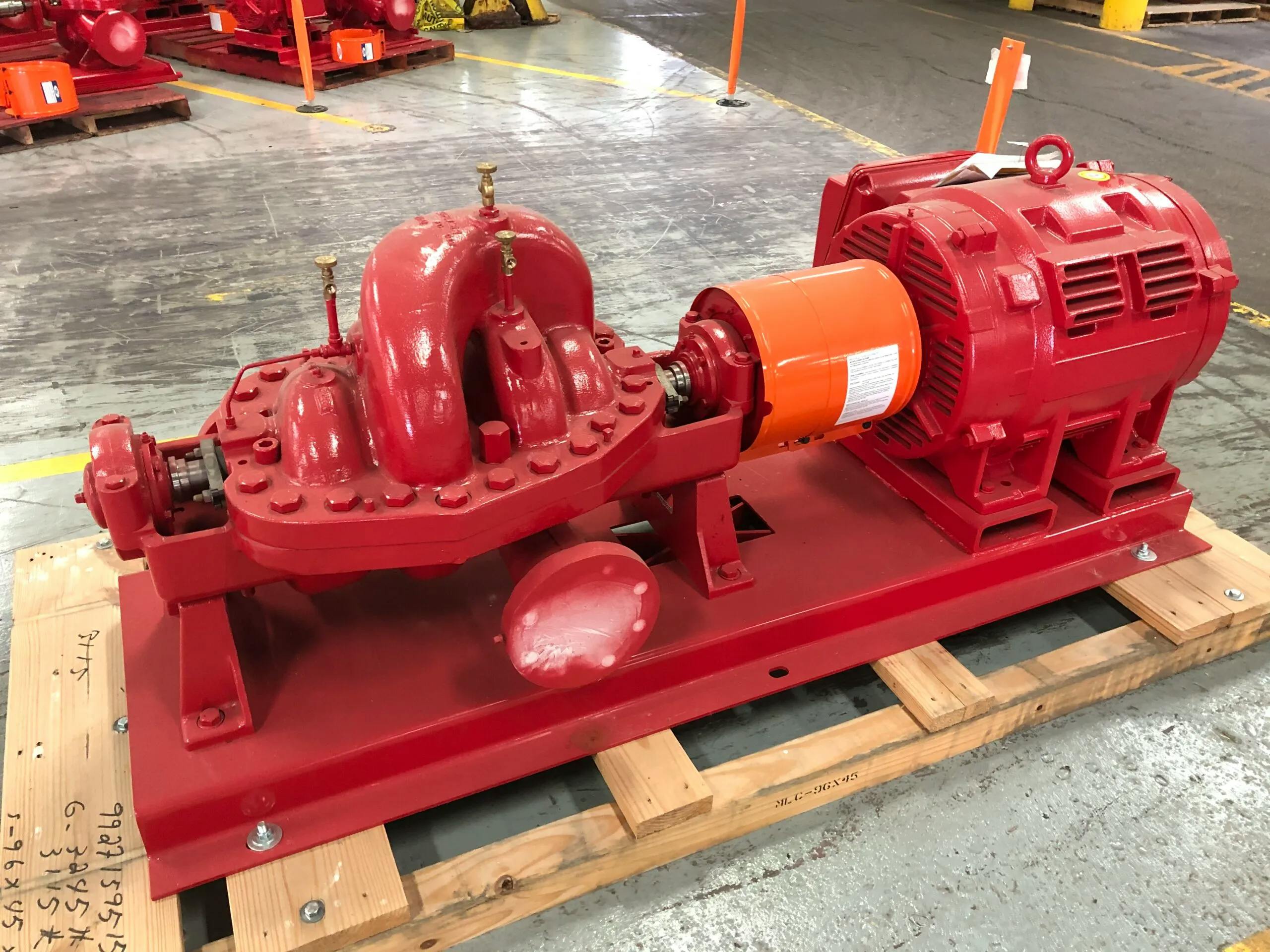

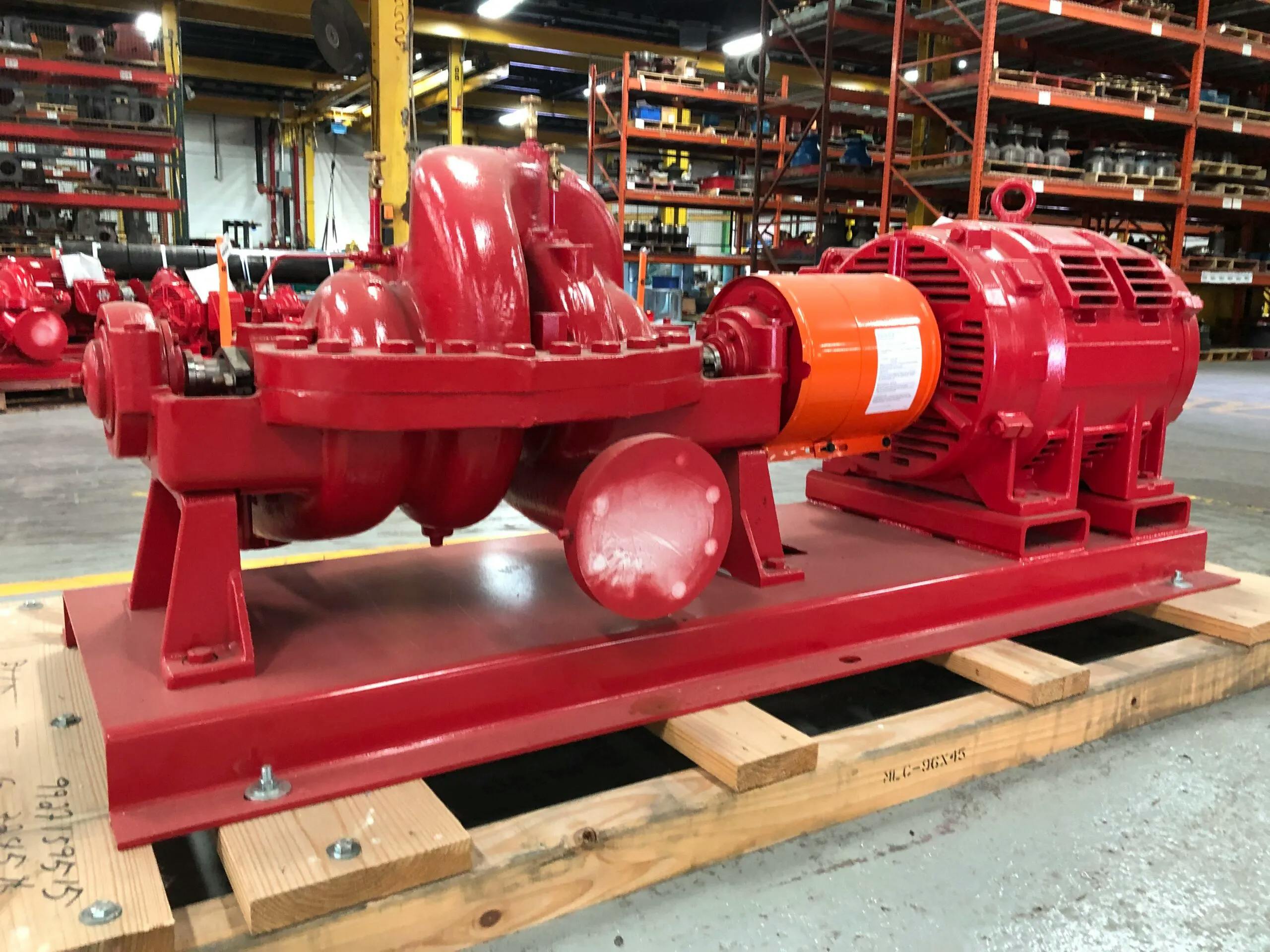

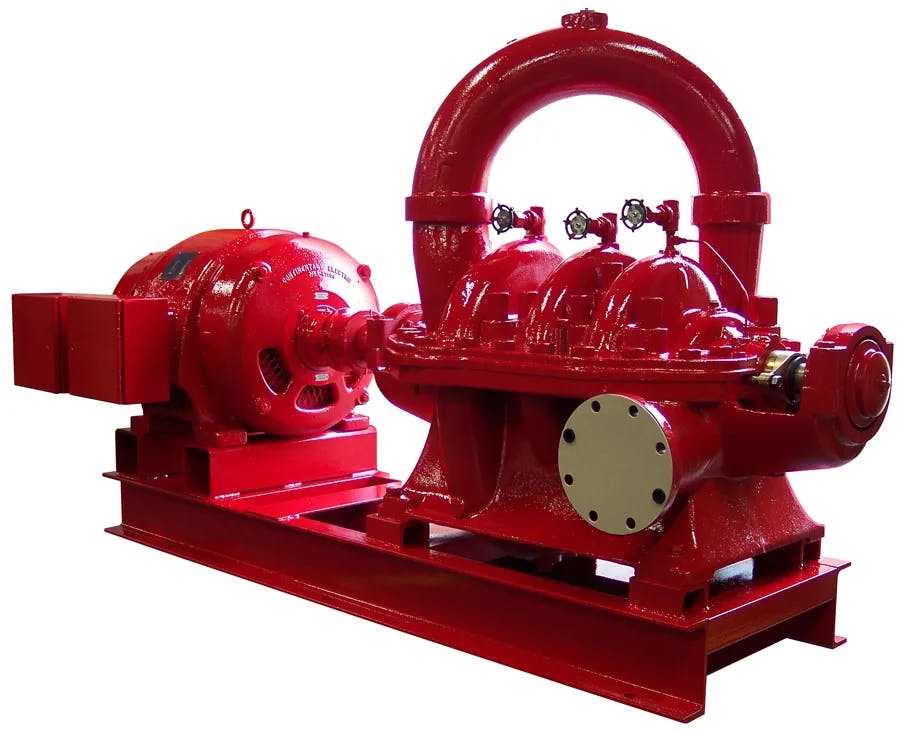

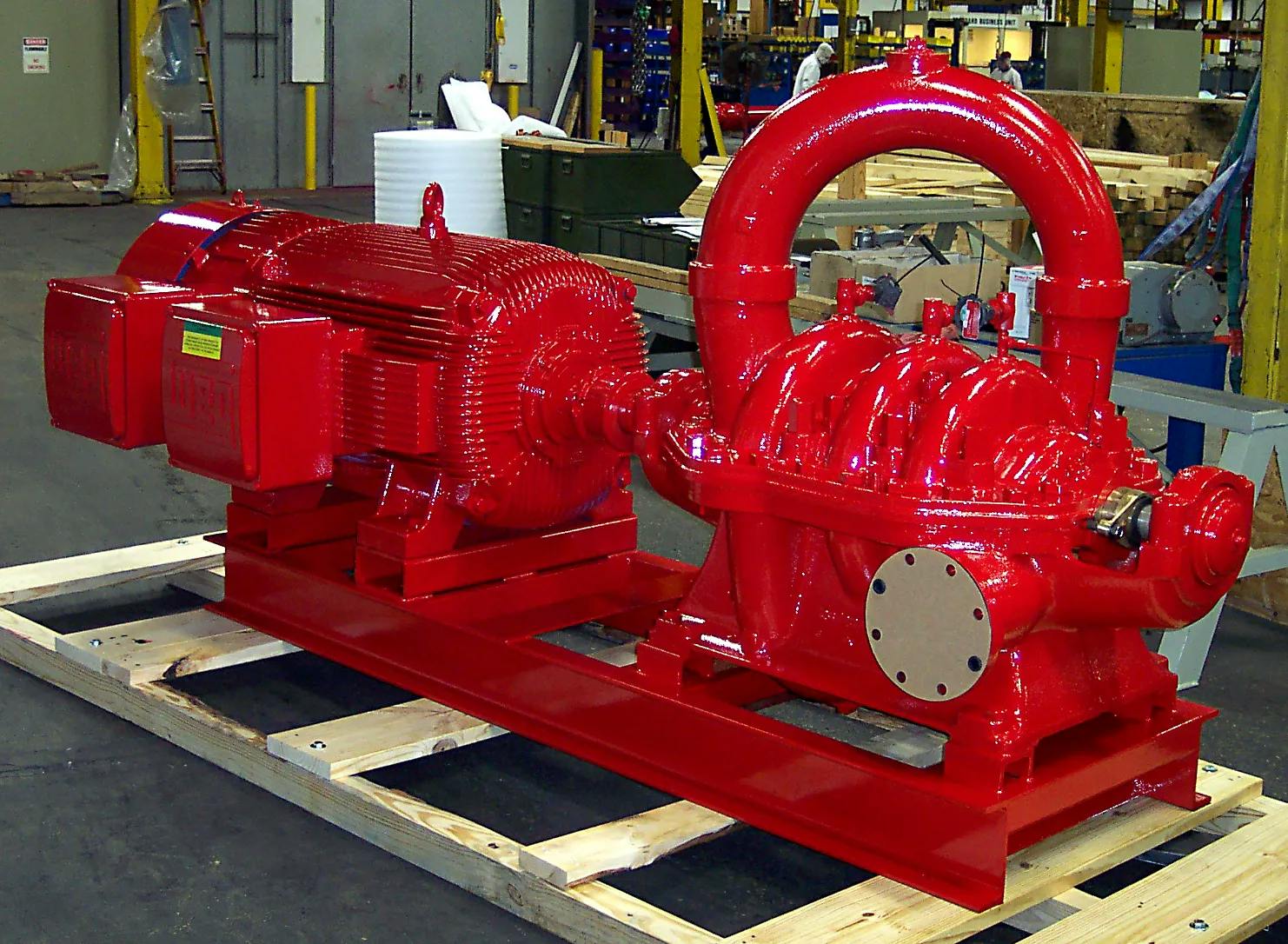

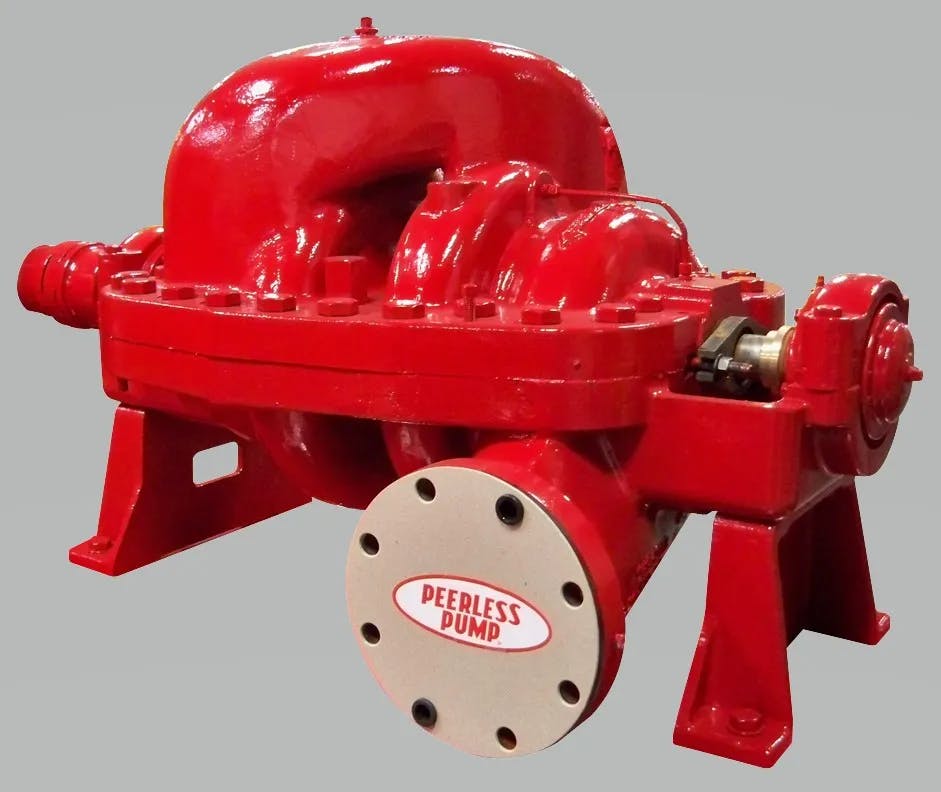

Complete line of horizontal split case, two- and three-stage fire pumps.
Specifications
- Capacities
- 50-1,500 gpm (11-340 m3/hr)
- Head
- 230-1,530 feet (70-454 m)
- Pressure
- 100-646 psi (6.8-44.5 bar)
- Horsepower
- Up to 500 hp (372 kW)
- Temperature
- Ambient within the limits for satisfactory equipment operation
- Drives
- Electric motors, diesel engines
- Liquids
- Potable/non-potable water, salt water
- Materials
- Cast iron, bronze fitted as standard. Optional materials available for sea water applications.
